The Secret of Ultra-Thin Power Banks: How New Nanomaterials Achieve Both Slimness and High Capacity

In recent years, the demand for portable power banks that are not only lightweight and ultra-thin but also boast large battery capacities has surged dramatically. Behind this technological leap lies the innovative application of advanced nanomaterials, which have revolutionized the design and performance of modern power banks.

Nanotechnology Boosts Battery Energy Density and Slimness

Traditional lithium-ion batteries typically use graphite as the anode material, which limits their energy density. However, new developments in nanomaterials, especially silicon-based nanostructures, have enabled significant improvements. For example, Amperex Technology has developed high-density, high-power silicon anode batteries using nanometer-scale silicon and silicon-oxygen composites. These batteries exhibit much higher energy densities—up to 840 Wh/L and 380 Wh/kg—compared to conventional graphite-based batteries, which generally reach about 680 Wh/L and 250 Wh/kg. This leap allows the battery cells to be made thinner and smaller without sacrificing capacity or charging speed12.

Specifically, Amperex’s silicon nanowire anode technology enables a 10000mAh 20W battery cell to reduce its thickness from 11mm to about 7.5mm, cutting nearly one-third of the height. This reduction translates directly into slimmer power banks that remain powerful and fast-charging, meeting consumers’ desires for portability and performance12.

Nanocoatings Enhance Durability and Safety

Beyond the battery cells themselves, nanomaterials also contribute to the protective layers of power banks. Nanocoatings applied to the internal circuit boards provide excellent water resistance, corrosion protection, and chemical stability. These coatings are ultra-thin (less than 1μm for moisture resistance and up to 10μm for waterproofing) and cover all sensitive components, including connectors and sensors, without impacting heat dissipation. This technology ensures that power banks can withstand harsh environments—such as exposure to salt spray, acids, or water immersion—while maintaining safe and reliable operation3.

Graphene and Other Nanomaterials: The Future of Ultra-Thin Power Banks

Graphene, a one-atom-thick layer of carbon atoms arranged in a two-dimensional lattice, is another nanomaterial with extraordinary properties. It boasts remarkable electrical conductivity—up to ten times that of silver—and exceptional mechanical strength. These features make graphene an ideal candidate for next-generation batteries and supercapacitors, enabling ultra-fast charging and high energy storage in extremely thin formats. For instance, graphene-based power banks can charge a 6000mAh battery in just 10 minutes, showcasing the potential for future devices that combine slimness with exceptional capacity and speed.

Practical Example: Xiaomi’s Ultra-Thin Power Bank

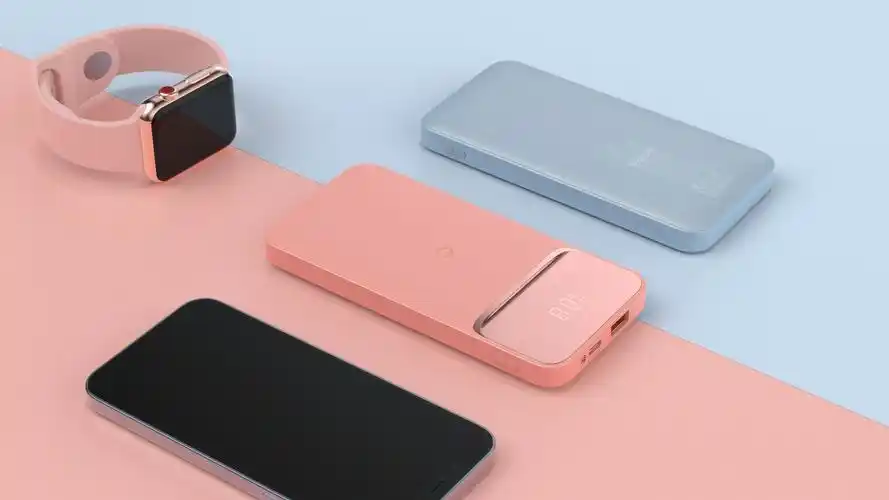

A real-world example is Xiaomi’s ultra-thin 5000mAh power bank, which measures just about 10mm in thickness and weighs only 93.5g. It uses high-quality soft-pack lithium batteries and advanced power management chips to deliver fast charging (up to 20W PD output) in a sleek, compact form factor. The internal design incorporates foam and composite materials for heat dissipation and shock absorption, demonstrating how material science and nanotechnology contribute to both the slim profile and reliable performance of modern power banks4.

Summary

The secret behind ultra-thin power banks that do not compromise on capacity lies in the integration of cutting-edge nanomaterials:

• Silicon nanowire anodes increase energy density, allowing thinner and lighter battery cells.
• Nanocoatings protect internal electronics from water, corrosion, and dust while maintaining safety and durability.
• Graphene and other nanomaterials promise future breakthroughs in charging speed and energy storage.
• These innovations collectively enable manufacturers to produce power banks that are both slim and powerful, meeting modern users’ demands for portability and performance.

As nanotechnology continues to evolve, we can expect even more impressive advancements in portable power solutions, making ultra-thin, high-capacity power banks a standard feature of our digital lives.
