iPhone 17’s Cooling System Upgrade: Can Vapor Chamber Heat Spreader Solve Overheating?

Apple’s iPhone 17 series introduces a significant upgrade in thermal management, addressing long-standing concerns about overheating during intensive tasks such as AI computations and prolonged gaming. The headline news is the debut of the vapor chamber (VC) cooling system, exclusively featured in the Pro Max model alongside a graphite sheet – a dual thermal solution designed to keep heat under control more effectively than previous generations.12

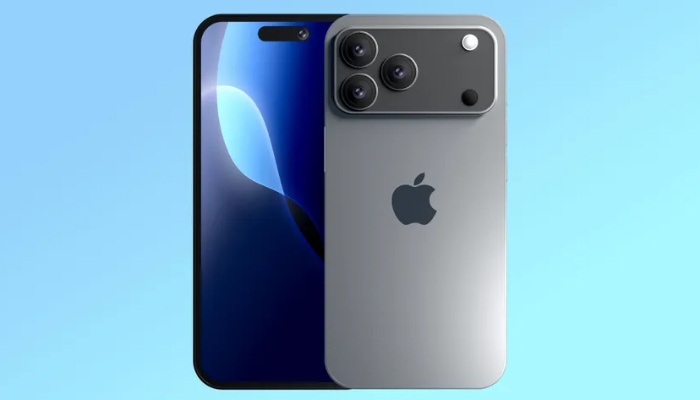

Vapor Chamber and Graphite Sheet Dual Cooling in iPhone 17 Pro Max

The iPhone 17 Pro Max stands out with its combination of a vapor chamber heat spreader coupled with graphite sheet layers. The vapor chamber, a sealed metal enclosure filled with liquid, operates on the principle of liquid-to-vapor phase transition to rapidly disperse heat away from hot components, such as the A19 Pro chipset, across a larger surface area. The vapor then condenses back to liquid, continuing the cycle continuously without requiring moving parts. Meanwhile, the graphite sheets supplement the vapor chamber by further spreading heat and preventing localized hotspots.23

This dual system represents a step up from the previous use of purely graphite-based cooling in earlier iPhone models, which, although helpful, struggled with heat dissipation during demanding workloads, causing thermal throttling and occasional overheating.4

Thermal Challenges from AI and High-Performance Tasks

The need for improved cooling stems partly from the iPhone 17’s A19 Pro chip, fabricated with TSMC’s advanced 3nm technology offering enhanced performance but also generating significant heat, especially under AI-powered features and heavy graphics processing. Continuous machine learning tasks inherent in Apple Intelligence services push thermal limits, historically prompting the phone to reduce performance to avoid damage.345

Vapor chamber cooling enables the chipset to maintain peak performance for longer periods by preventing heat buildup, reducing or eliminating thermal throttling. This advancement improves not only sustained computational power but also battery efficiency, display brightness stability, and overall device longevity during high-demand usage scenarios.5

Exclusive Implementation in Pro Max and Its Implications

While rumors have debated whether vapor chamber technology would extend across the entire iPhone 17 lineup, credible sources confirm it is exclusive to the Pro Max, paired with graphite sheets as a dual system. Other iPhone 17 models are expected to rely solely on graphite cooling methods. This selective upgrade reflects Apple’s approach to reserve premium materials and advanced features for its top-tier model, positioning the Pro Max as the most capable iPhone when it comes to thermal stability and sustained performance.6

Real-World Impact and User Benefits

For users, this means the iPhone 17 Pro Max can handle CPU/GPU intensive tasks—gaming, 4K video editing, AI analysis—without the device becoming uncomfortably hot or throttling performance prematurely. The vapor chamber’s effectiveness in quickly distributing heat should also lead to a cooler surface temperature, improving user comfort during extended use. Moreover, better thermal management could extend the lifespan of internal components by minimizing heat-induced wear.

Conclusion: Vapor Chamber + Graphite – A Promising Cooling Duo

Apple’s integration of the vapor chamber with graphite sheets in the iPhone 17 Pro Max marks a notable improvement in the battle against overheating. This system promises to tackle the thermal challenges posed by the increasingly demanding AI and high-performance workloads, allowing users to enjoy sustained peak performance without compromise. While confined to the Pro Max, this upgrade sets a new benchmark for iPhone thermal solutions and could pave the way for broader adoption in future models.45
