Dissecting Charging Cables: How Internal Structure Determines Performance Differences

When choosing charging cables, many people focus on brand or price but often overlook a crucial factor—the internal structure. By dissecting various types of charging cables—from budget to premium models—one can clearly see how their layers, from outer insulation to inner conductors, directly impact performance, durability, and safety. This blog breaks down the main components inside a charging cable: the insulating jacket, shielding layer, and conductive wires. Understanding each layer’s function and material differences helps consumers make smarter buying decisions.

Outer Layer: Insulating Jacket

The insulating jacket protects the cable from external damage, enhances flexibility, and provides user safety. Common insulation materials include PVC, TPE, and nylon braiding, each with unique properties:

• PVC (Polyvinyl Chloride): Widely used for low-cost cables, PVC offers good weather resistance and fire retardancy. However, it tends to be hard and less flexible, with a rough surface that can peel over time. It sometimes emits an odor due to chemical plasticizers.1
• TPE (Thermoplastic Elastomer): A higher-end option known for its elasticity, environmental friendliness, and softer, slip-resistant texture. TPE can stretch more without damage (maximum elasticity around 600%), making cables more durable under bending stresses.2
• Nylon Braided Sheath: Often used as an external cover over PVC or TPE insulation, nylon braiding greatly improves abrasion resistance and aesthetics. It also adds flexibility but does not provide electrical insulation itself.3

Middle Layer: Shielding

The shielding layer prevents electromagnetic interference (EMI), which can degrade signal quality or cause data errors during charging and data transfer.

• EMI shielding works by reflecting, absorbing, or dissipating electromagnetic waves before they reach sensitive cable conductors. This can be achieved using conductive materials like copper, aluminum foil, or metal braiding creating a Faraday cage effect.4
• Higher quality shielding employs multiple layers combining aluminum foil and braided copper mesh, providing more comprehensive EMI protection. Lower quality cables may have thin or partial shielding, compromising signal integrity.

Core Conductors: Power and Data Wires

At the heart of the charging cable are its conductive wires which carry current and data signals.

• Power cables usually comprise thicker wires made from copper or tinned copper. Tinned copper is copper wire coated with a thin layer of tin, which protects against corrosion and oxidation, especially in humid environments, thereby increasing cable lifespan with minimal conductivity loss compared to bare copper.5
• Data cables consist of finer wires designed for signal transmission. These often include USB 2.0 data lines and configuration channels, with copper cores carefully twisted to reduce interference and maintain signal quality.
• For cables supporting high current charging, such as fast charging for electric vehicles or high-power USB-C cables, the power conductors are thicker and sometimes use advanced cooling techniques internally to handle the thermal load safely.

Case Study: Apple USB-C Charging Cable Teardown

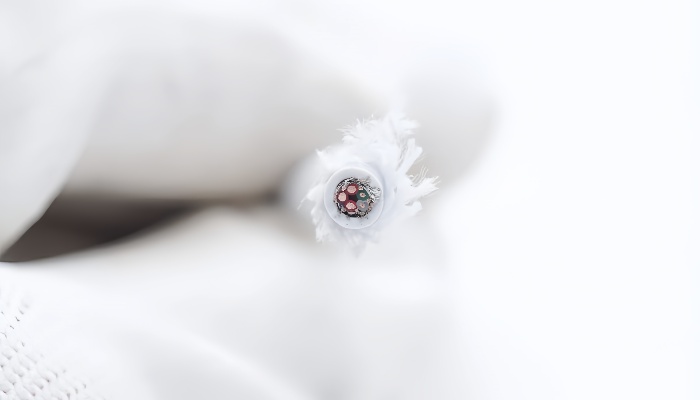

A detailed teardown of Apple’s 240W USB-C charging cable reveals six internal wires: three thick red positive power wires made of tinned copper, two USB 2.0 data wires (white and green), one thin blue CC wire, and several bare tinned copper wires for negative power. The wires are wrapped in white TPE insulation, covered by a shielding net and aluminum foil, with tensile fibers underneath for durability. This design balances power delivery, data transmission, and mechanical robustness.3

Final Thoughts

Through visualizing and understanding these internal layers and material choices, consumers can see why cheaper cables may underperform or degrade faster. An informed buyer will look at the insulation type—favoring softer, elastic materials like TPE—check for robust multi-layer shielding, and prefer tinned copper conductors for longevity. Such awareness ensures safer, faster charging and reliable data transmission, ultimately protecting devices and investments.
